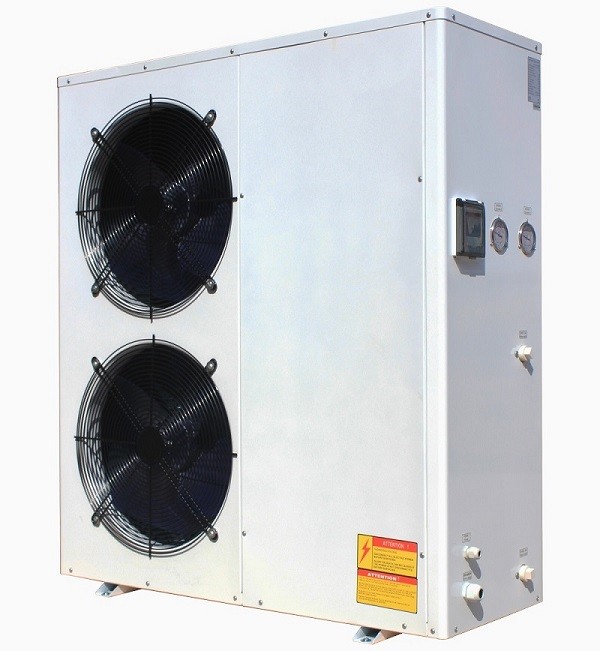

15~16kw eco friendly air source air heat pump with Panosonic compressor
15~16kw eco friendly air source air heat pump with Panosonic compressor
15~16kw eco friendly air source air heat pump with Panosonic compressor
15~16kw eco friendly air source air heat pump with Panosonic compressor
Model
ESDAW-14CH

Item specifics

Color
White, black, grey
Compressor
Panosonic
Heat exchanger
High efficiency tube in shell
Throttling device
Electronica expansion valve
Controller
Lcd intelligent controller
Refrigerant
R410A
Custom color
Available
Sample
Available

Product review

Description

15~16kw eco friendly air source air heat pump with Panosonic compressor
Specification
Model  ESDAW-16CH (220v) ESDAW-16CH (380v)
Heating capacity  A7/W35 KW 15.4 15.9
Heating power input KW 4.4 4.5
Rated current A 20 8.5
COP A7/W35 / 3.50  3.53
Max. water temperature 60 60
Rated water temperature 55 55
Water flow m3/h 2.70  2.70
Water pressure drop Kpa 30  30
Water connections Inch 1" 1"
Compressor Brand Panosonic Panosonic
Qty 2 1
Power supply V/PH/Hz 220240/1/50 380400/3/50
Refrigerant /  R410a  R410a
Noise dB(A) 58 58
Net weight kg 150 130
Gross weight kg 165 145
Net dimensions mm 1110*460*1250 1110*460*1250
Packing dimensions mm 1220*480*1400 1220*480*1400
