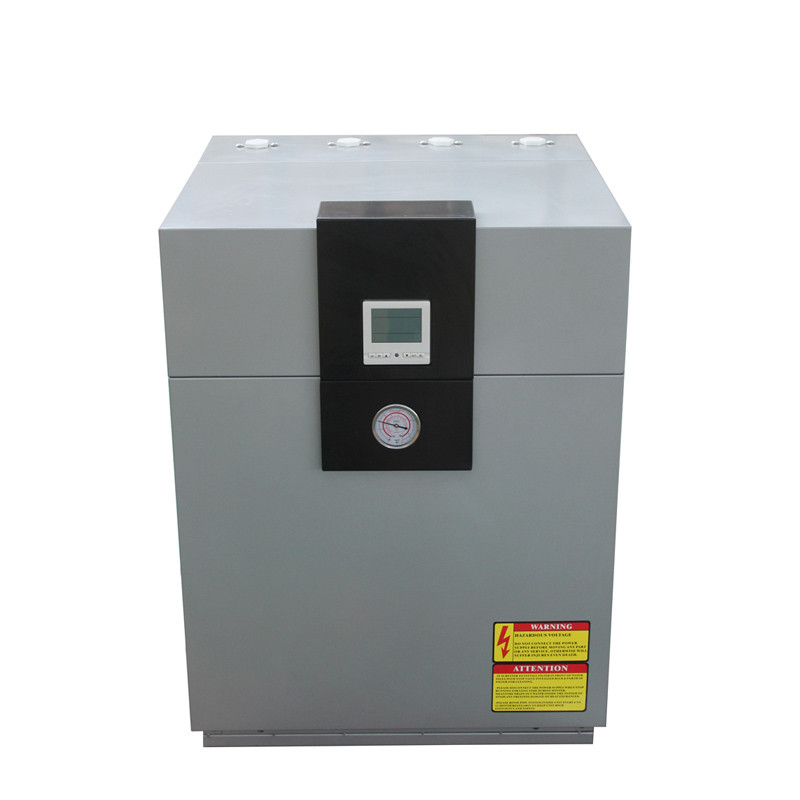

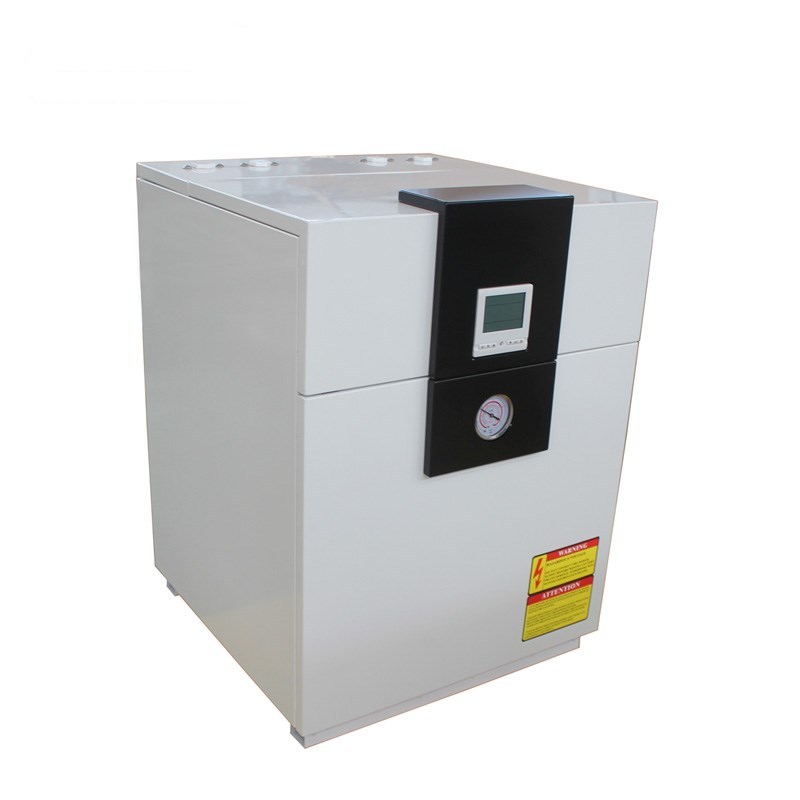

10kw Geothermal heat pump water heat source water to water heat pump
10kw Geothermal heat pump water heat source water to water heat pump
10kw Geothermal heat pump water heat source water to water heat pump
10kw Geothermal heat pump water heat source water to water heat pump
Model
ESDWW-10X

Item specifics

Color
white, grey
Compressor
Panasonic
Heat exchanger
Plate heat exchanger
Throttling device
Electronic expansion valve
Controller
Lcd intelligent controller
Refrigerant
R410A
Custom color
Available
Sample
Available

Product review

Description

10kw Geothermal heat pump water heat source water to water heat pump

Specification

Model ESDWW-10X
Heating capacity W10/W35 (1) KW 10.20
Heating power input W10/W35 KW 2.18
COP W10/W35   4.68
Heating capacity W10/W55 (2) KW 9.08
Heating power input W10/W55 KW 2.88
COP W10/W55   3.15
Heating capacity B0/W35 (3) KW 9.49
Heating power input B0/W35 KW 2.20
COP B0/W35   4.31
Heating capacity B0/W55 (4) KW 7.96
Heating power input B0/W55 KW 3.16
COP B0/W55   2.52
Max. water temperature 60
Rated water temperature 55
Water flow (Heating side) m3/h 1.80
Water flow (ground source side) m3/h 1.90
Water pressure drop Kpa 22
Noise dB(A) 40
Water connections Inch 3/4"
Net weight kg 73
Gross weight kg 88
Net dimensions mm 600*615*800
Packing dimensions mm 640*660*950
