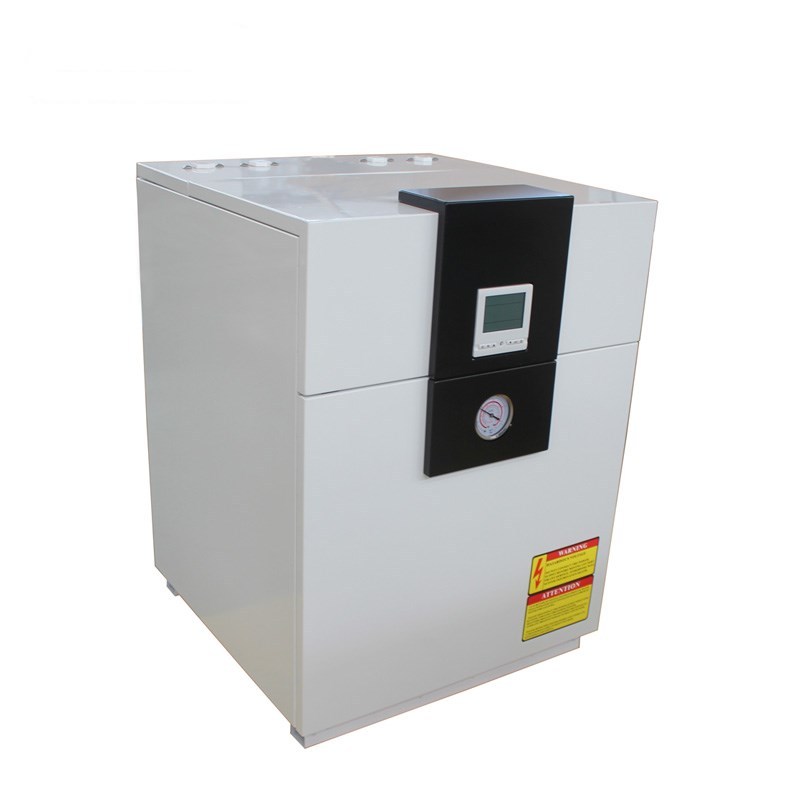

6kw, 9kw geothermal heat pump water source heat pump ground source heat pump
6kw, 9kw geothermal heat pump water source heat pump ground source heat pump
6kw, 9kw geothermal heat pump water source heat pump ground source heat pump
6kw, 9kw geothermal heat pump water source heat pump ground source heat pump
Model
ESDWW-6X/9X

Item specifics

Color
white, grey
Compressor
Hitachi
Heat exchanger
High efficiency tube in shell exchanger
Throttling device
Electronic expansion valve
Controller
Lcd intelligent controller
Refrigerant
R410A
Custom color
Available
Sample
Available

Product review

Description

6kw, 9kw geothermal heat pump water source heat pump ground source heat pump

Specification

Model ESDWW-6X ESDWW-9X
Heating capacity W10/W35 (1) KW 6.40  9.10
Heating power input W10/W35 KW 1.37  1.94
COP W10/W35   4.67  4.69
Heating capacity W10/W55 (2) KW 5.70  8.10
Heating power input W10/W55 KW 1.81  2.56
COP W10/W55   3.15  3.16
Heating capacity B0/W35 (3) KW 5.95  8.46
Heating power input B0/W35 KW 1.38  1.96
COP B0/W35   4.30  4.32
Heating capacity B0/W55 (4) KW 4.99  7.10
Heating power input B0/W55 KW 1.99  2.81
COP B0/W55   2.51  2.52
Max. water temperature 60.00  60
Rated water temperature 55.00  55
Water flow (Heating side) m3/h 1.10  1.60
Water flow (ground source side) m3/h 1.20  1.70
Water pressure drop Kpa 22.00  22
Noise dB(A) 40.00  40
Water connections Inch 3/4" 3/4"
Net weight kg 75 85
Gross weight kg 86 96
Net dimensions mm 540*555*740 540*555*740
Packing dimensions mm 580*600*900 580*600*900
