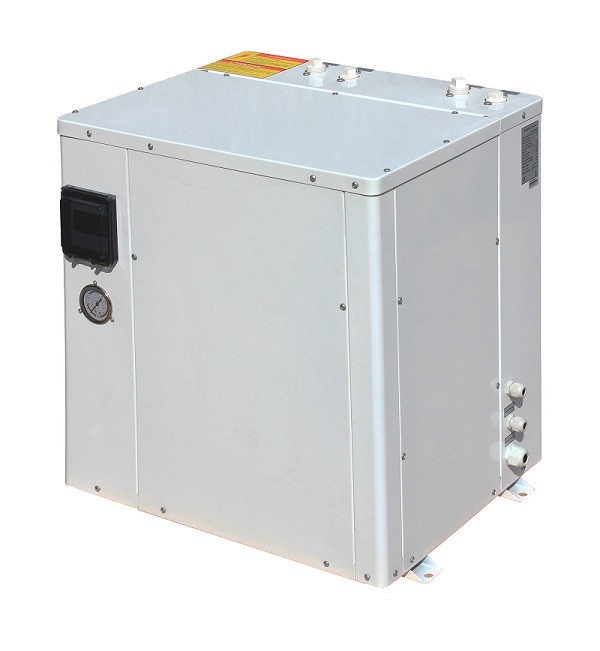

13-20kw Geothermal water to water heat pump water heat energy heat pump ground water source heat pump
13-20kw Geothermal water to water heat pump water heat energy heat pump ground water source heat pump
13-20kw Geothermal water to water heat pump water heat energy heat pump ground water source heat pump
13-20kw Geothermal water to water heat pump water heat energy heat pump ground water source heat pump
Model
ESDWW-13C/17C/20C

Item specifics

Color
white, grey
Compressor
Panasonic
Heat exchanger
Plate heat exchanger
Throttling device
Electronic expansion valve
Controller
Lcd intelligent controller
Refrigerant
R410A
Custom color
Available
Sample
Available

Product review

Description

13-20kw Geothermal water to water heat pump water heat energy heat pump ground water source heat pump

Specification
Model ESDWW-13C ESDWW-17C ESDWW-20C
Heating capacity W15/W35 KW 13 17 20
Heating power input KW 2.6 3.4 4
Rated current A 11.8 6.5 7.6
COP W15/W35 / 5 5 5
Max. water temperature 60  60  60
Rated water temperature 55  55  55
Water flow (hot water side) m3/h 2.00  3
Water flow (ground source side) m3/h 1.80  2.7
Water pressure drop Kpa 24  28  30
Noise dB(A) 41  41  42
Water connections Inch 1'' 1'' 1''
Compressor Brand Panasonic Panasonic Panasonic
Quantity 1 1 1
Power supply V/Ph/Hz 220/1/50 380/3/50 380/3/50
Refrigerant / R410a R410a R410a
Net weight kg 90 105 130
Gross weight kg 105 120 145
Net dimensions mm 610*510*675 610*510*675 610*510*675
Packing dimensions mm 680*590*820 680*590*820 680*590*820
