8~11kw eco friendly high efficiency hot water heating air to water heat pump (220V/1PH)
8~11kw eco friendly high efficiency hot water heating air to water heat pump (220V/1PH)
8~11kw eco friendly high efficiency hot water heating air to water heat pump (220V/1PH)
8~11kw eco friendly high efficiency hot water heating air to water heat pump (220V/1PH)
8~11kw eco friendly high efficiency hot water heating air to water heat pump (220V/1PH)
Model
ESDAW-8CH/9CH/11CH

Item specifics

Color
White, black, grey
Compressor
Hitachi
Heat exchanger
Tube in shell
Throttling device
Electronica expansion valve
Controller
Lcd intelligent controller
Refrigerant
R410A
Max. temperature
60℃
Custom color
Available
Sample
Available

Product review

Description

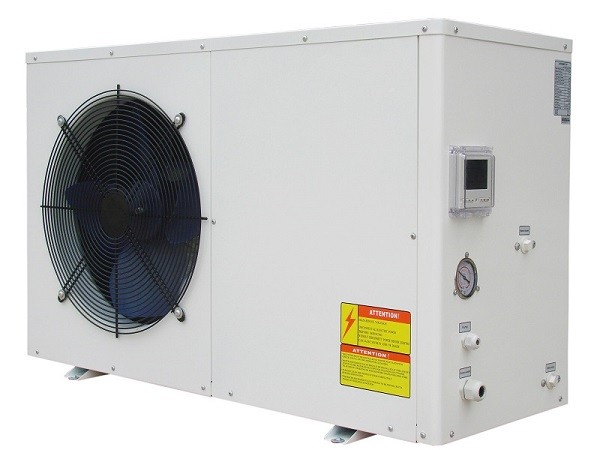

8~11kw eco friendly high efficiency hot water heating air to water heat pump
Specification
Model  ESDAW-8CH ESDAW-9CH ESDAW-11CH
Heating capacity  A7/W35 KW 8.3 8.9 10.5
Heating power input KW 2.3 2.5 3.0
Rated current A 10.5 11.4 13.6
COP A7/W35 / 3.61  3.56  3.50
Max. water temperature 60 60 60
Rated water temperature 55 55 55
Water flow m3/h 1.40  1.50  1.90
Water pressure drop Kpa 22  22  24
Water connections Inch 3/4" 3/4" 3/4"
Compressor Brand Hitachi Hitachi Panosonic
Qty 1 1 1
Power supply V/PH/Hz 220240/1/50 220240/1/50 220240/1/50
Refrigerant /  R410a  R410a  R410a
Noise dB(A) 52 52 58
Net weight kg 67 72 83
Gross weight kg 80 85 98
Net dimensions mm 1100*460*687 1100*460*687 1100*460*687
Packing dimensions mm 1220*500*860 1220*500*860 1220*500*860
