Model
ESDAW-11CH

Item specifics

Color
White, black, grey
Compressor
Hitachi/Panosonic
Heat exchanger
High efficiency tube in shell
Throttling device
Electronica expansion valve
Controller
Lcd intelligent controller
Refrigerant
R410A
Custom color
Available
Sample
Available

Product review

Description

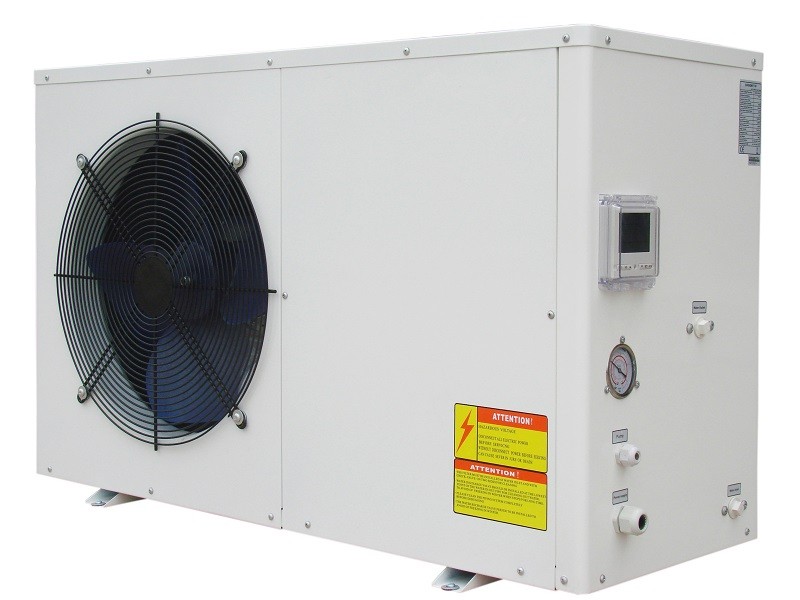

11kw home use efficient intelligent defrosting air to water air heat source heat pump

Specification
Model  ESDAW-11CH (220v) ESDAW-11CH (380v)
Heating capacity  A7/W35 KW 10.5 11
Heating power input KW 3.0  3.1
Rated current A 13.6  8.9
COP A7/W35 / 3.50  3.55
Max. water temperature 60 60
Rated water temperature 55 55
Water flow m3/h 1.90  1.90
Water pressure drop Kpa 24  24
Water connections Inch 3/4" 3/4"
Compressor Brand Panosonic Panosonic
Qty 1 1
Power supply V/PH/Hz 220240/1/50 380400/3/50
Refrigerant /  R410a  R410a
Noise dB(A) 58 58
Net weight kg 83 83
Gross weight kg 98 98
Net dimensions mm 1100*460*687 1100*460*687
Packing dimensions mm 1220*500*860 1220*500*860
